Online design tools
CNC Design Tools
Online tools for CNC milling and laser files — free tools included, Pro tools from 1 € per file or with a plan. No installation needed: get started right away and export as SVG, DXF or PDF.
Boxes & Storage
Design parametric finger-joint boxes – from simple trays to full toolboxes.
Free

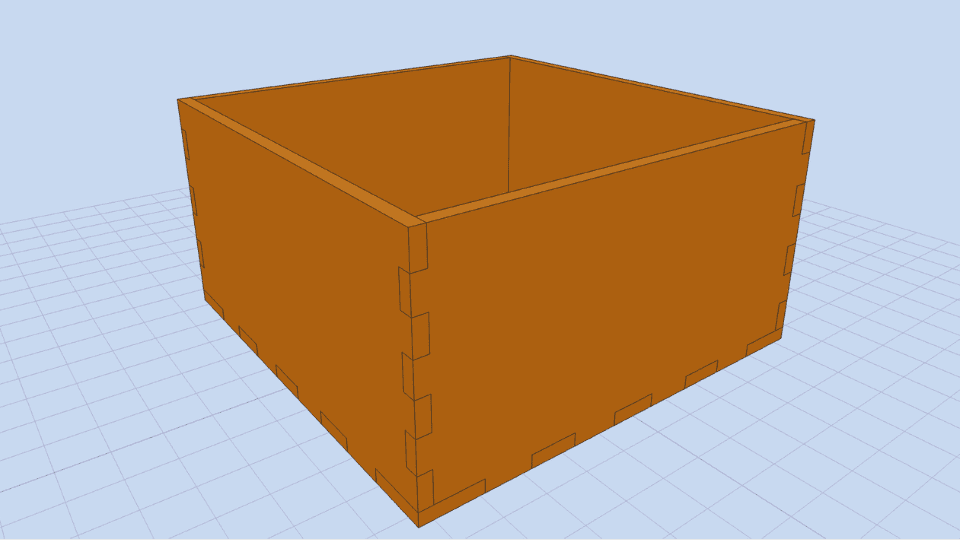

Box Designer
Parametric boxes with finger joints or enclosed build — open, closed or frame style. Optional dividers with cross-lap joints, kerf compensation included.
Open, closed & frameCross-lap dividers2D & 3D previewSVG, DXF, PDF, STEP & STL
FreeNew

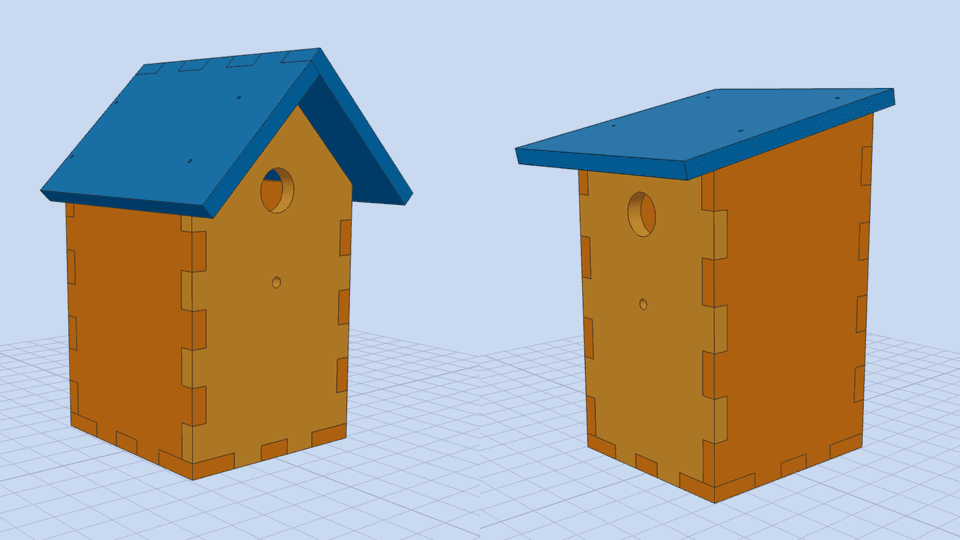

Birdhouse Designer
Nesting box & feeder with finger joints: shed roof, gable roof, open front or an open feeder — removable roof and mounting back panel.
Four styles incl. a feeder2D & 3D previewSVG, DXF, PDF, STEP & STL
FreeNew

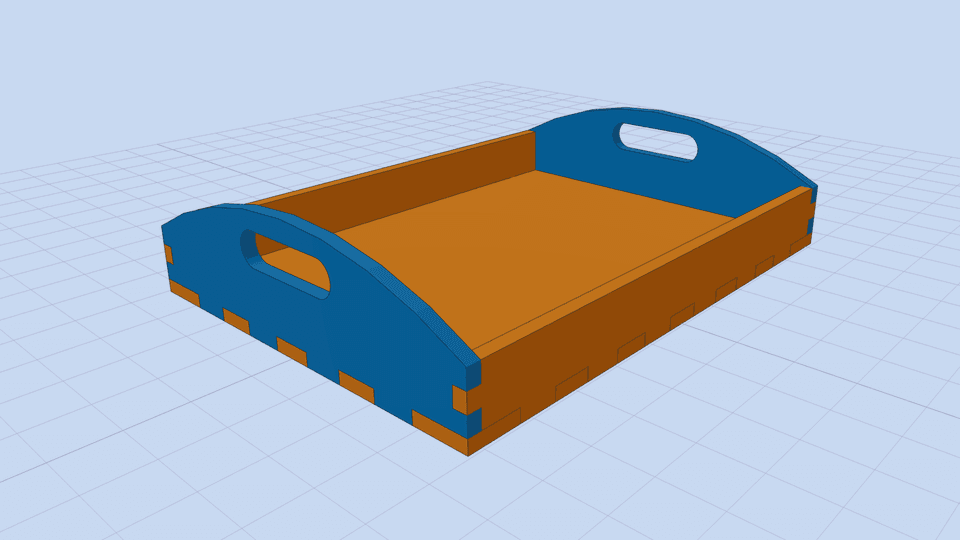

Tray Designer
A serving tray with finger joints: low long walls, raised end walls with an arc, slopes or a straight top, and handle cutouts in three shapes — enclosed on request.
Arc, sloped & straight profileHandle cutouts in 3 shapes2D & 3D previewSVG, DXF, PDF, STEP & STL
Pro1 €/file · included in CNC Base Pro (30 €/year)

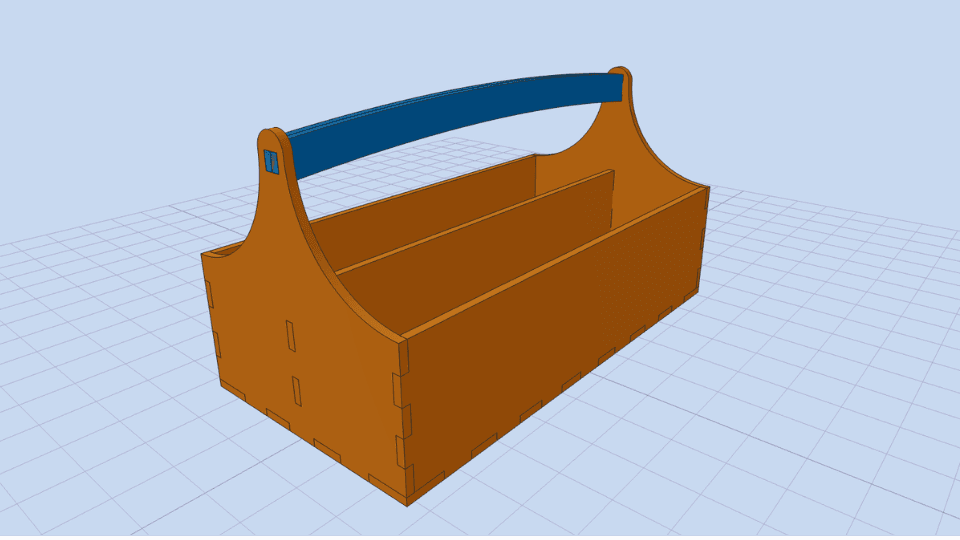

Toolbox Designer
A classic toolbox with finger joints: arc or diagonal side profile, a continuous handle bar, an optional center divider — enclosed on request.
Arc or diagonal profileContinuous handle barOptional center dividerSVG, DXF, PDF, STEP & STL
Pro1 €/file · included in CNC Base Pro (30 €/year)New

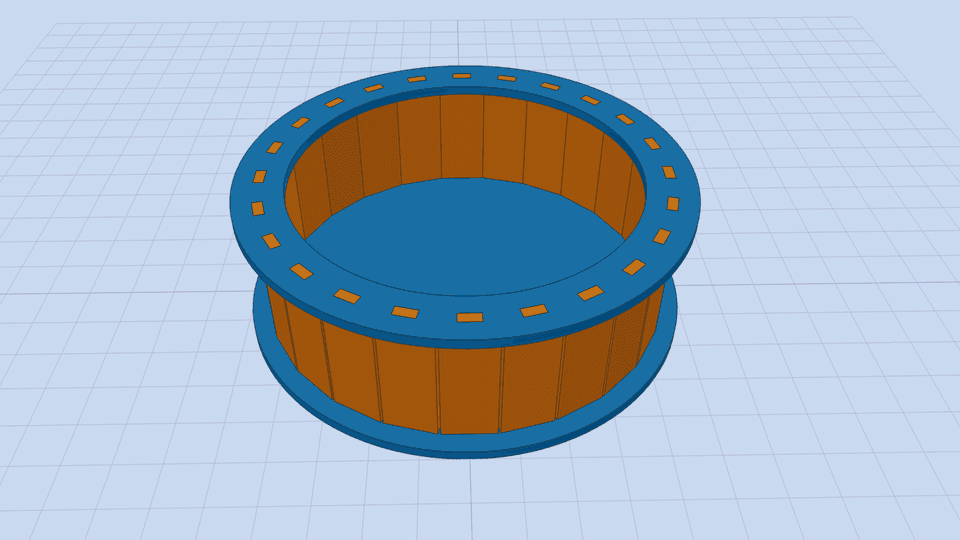

Round Box Designer
Round boxes from flat parts: bottom plate and top ring with slot rings, vertical staves with tabs — diameter, height and stave count freely adjustable.
Round shape, no bendingStave count & gap adjustableSVG, DXF & PDF
Pro1 €/file · included in CNC Base Pro (30 €/year)

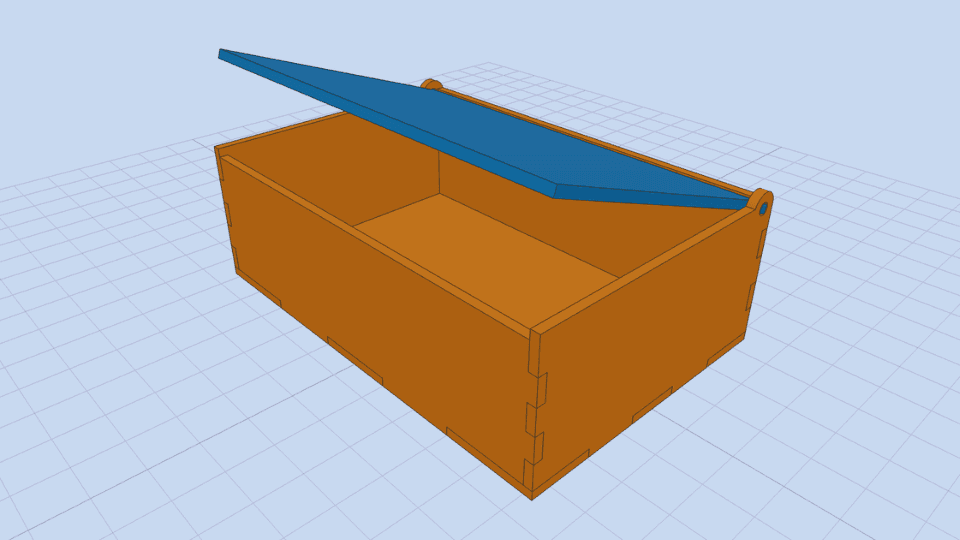

Hinged Lid Box Designer
A wooden box with a hinged lid: pin hinge made of lid tabs and rounded cutouts in the side panels, adjustable overhang and lid clearance.
Pin hingeAdjustable overhangLid clearanceSVG, DXF, PDF, STEP & STL
Pro1 €/file · included in CNC Base Pro (30 €/year)New

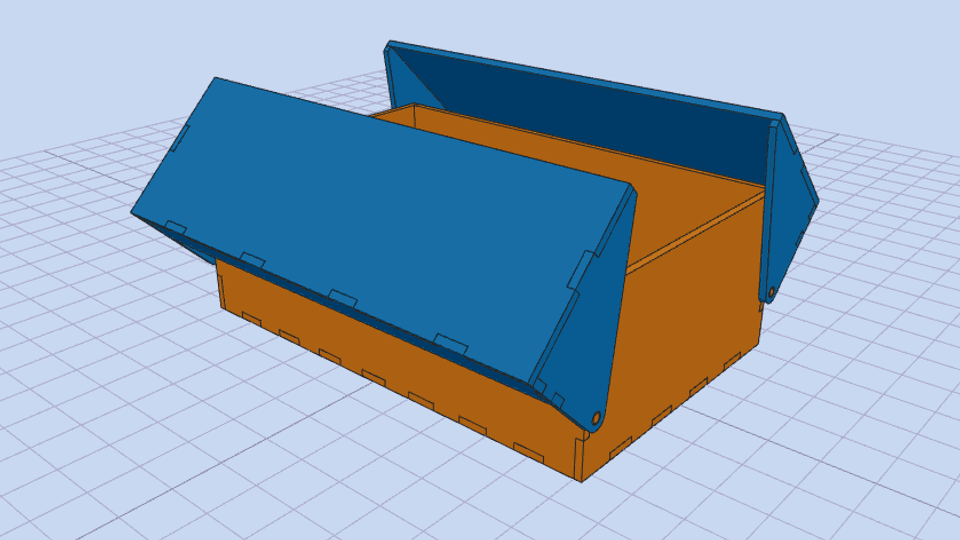

Flap Lid Box Designer
Wooden box with one or two flaps that swing outward around a low pivot. The pivot pin is cut from the material, no hardware.
1 or 2 flapsHinge without hardwareFinger joints or enclosedSVG, DXF, PDF & STEP
Pro1 €/file · included in CNC Base Pro (30 €/year)

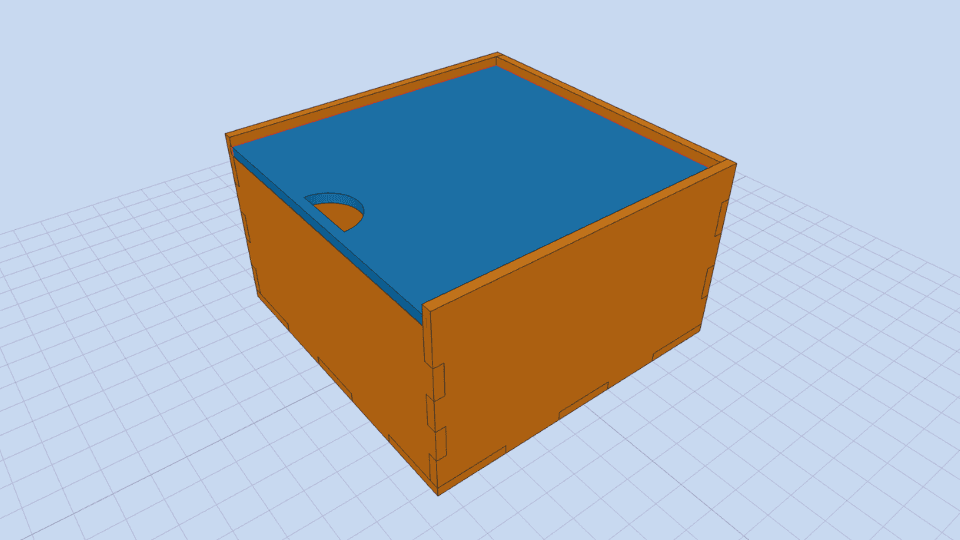

Sliding Lid Box Designer
A wooden box with a sliding lid: the lid runs in grooves in the side and back panels — lower front for sliding in, half-moon grip.
Groove-guided lidLower frontHalf-moon gripSVG, DXF, PDF, STEP & STL
Pro1 €/file · included in CNC Base Pro (30 €/year)

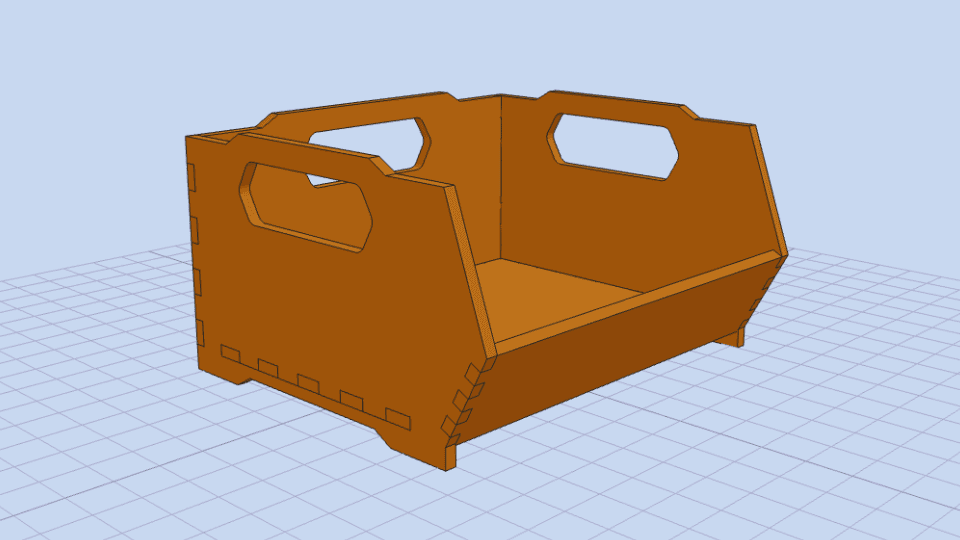

Organizer Box Designer
Stackable organizers with a sloped front opening: low front for quick access, diagonal side slopes, stacking mechanism and handle cutouts.
Sloped front openingStackable, with handlesSVG, DXF, PDF, STEP & STL
Pro1 €/file · included in CNC Base Pro (30 €/year)

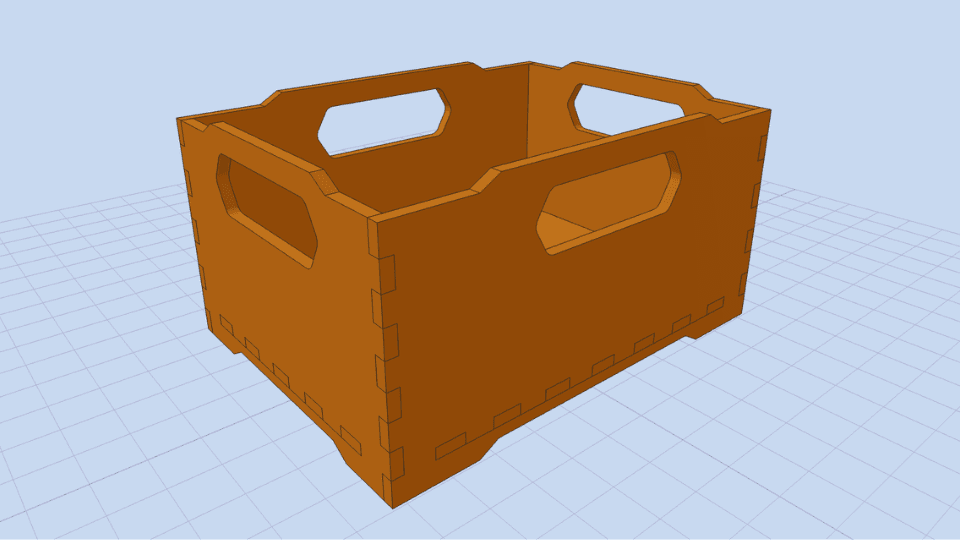

Stackable Box Designer
Open boxes that stack securely: stacking tabs with matching recesses, a raised bottom plate and optional handle cutouts.
Stacking tabs & recessesRaised bottom, handle holesSVG, DXF, PDF, STEP & STL
Pro1 €/file · included in CNC Base Pro (30 €/year)

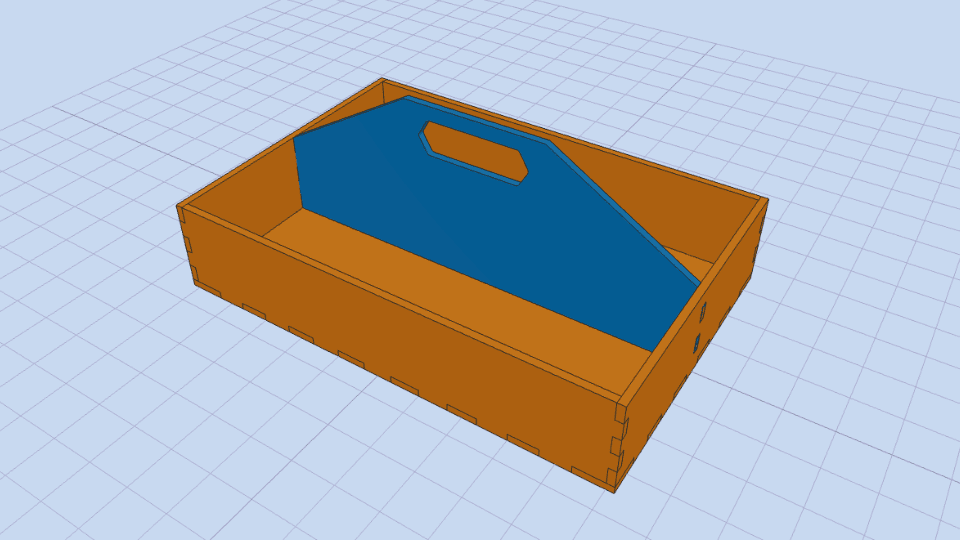

Carrier Box Designer
A carrier box with finger joints: center divider with an integrated grip cutout, full and half separators, optional stacking.
Grip in the center dividerFull & half separatorsStacking modeSVG, DXF, PDF, STEP & STL
Pro1 €/file · included in CNC Base Pro (30 €/year)

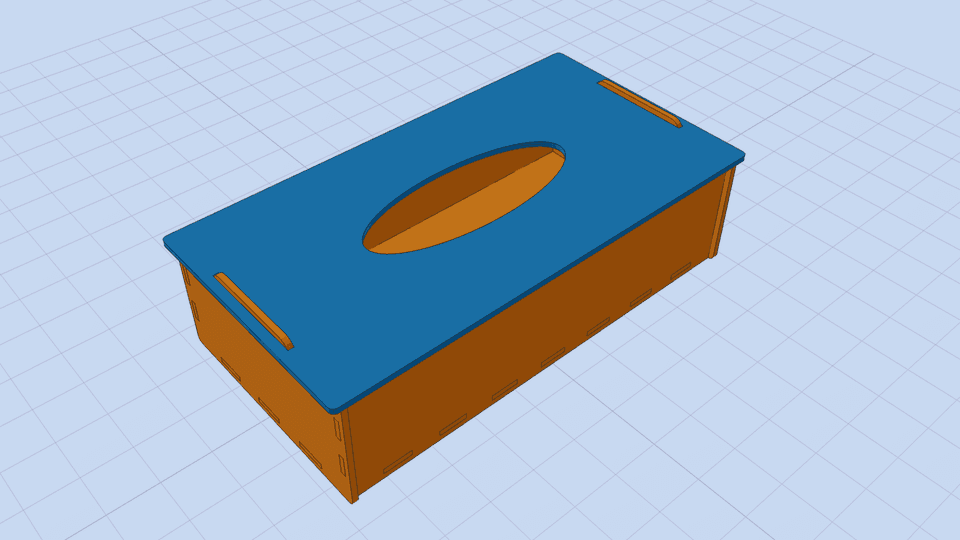

Tissue Box Designer
A tissue box with finger joints: slip-on lid with an elliptical opening, held by rounded retention tabs on the end walls — defaults fit standard tissue packs.
Slip-on lid with tabsElliptical openingOptional glue-free buildSVG, DXF, PDF, STEP & STL
Pro1 €/file · included in CNC Base Pro (30 €/year)New

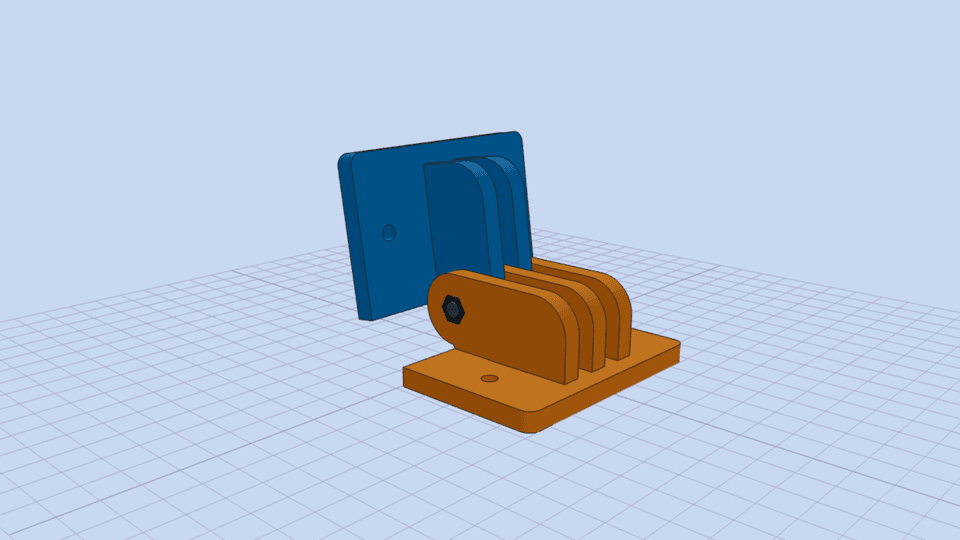

Box Hinge Designer
Surface-mounted hinges from flat parts: mounting plates, knuckle leaves and a rod or screw pin, opens up to 180°.
Opens up to 180°Rod or M3–M8 screwNut & head pocketsSVG, DXF, PDF, STEP & STL
Free

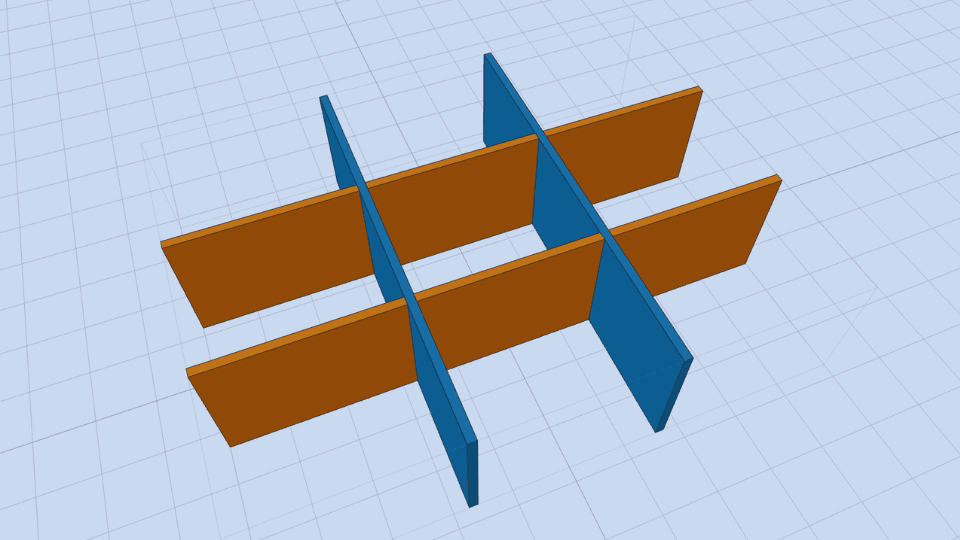

Box Divider Designer
Cross-lap dividers for any box: X and Y dividers interlock through half-height slots into a stable grid with freely configurable compartments.
Cross-lap gridConfigurable compartmentsSVG, DXF & PDF
Living Hinges
Make rigid material bendable – cut patterns for flexible one-piece hinges.
Free
Straight Living Hinge
The living hinge classic: straight slits in a brick pattern for reliable bends around one axis.
Brick patternReliable bendingSVG, DXF & PDF
Free

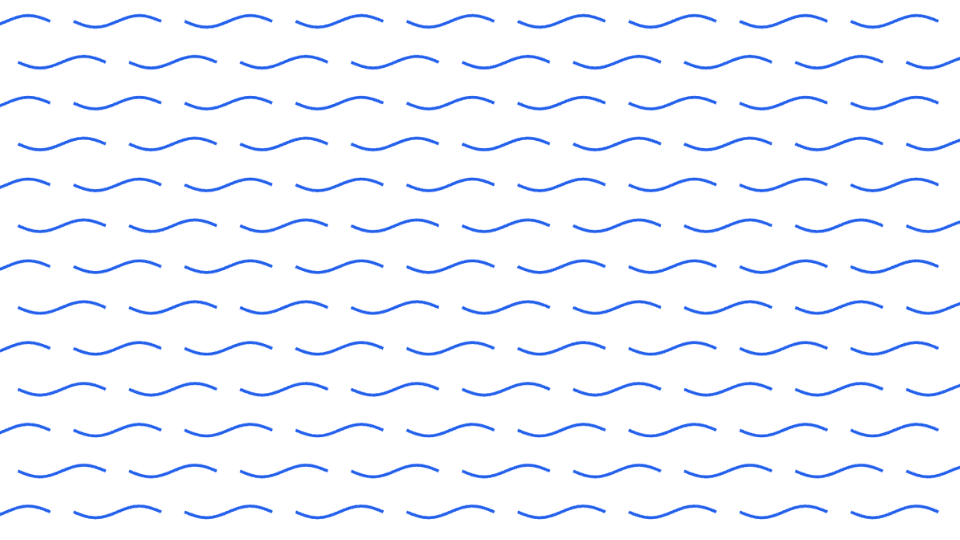

Wave Living Hinge
Living hinges with a sinusoidal wave pattern – an organic look for visible bend zones.
Wave patternOrganic lookSVG, DXF & PDF
Pro1 €/file · included in CNC Base Pro (30 €/year)

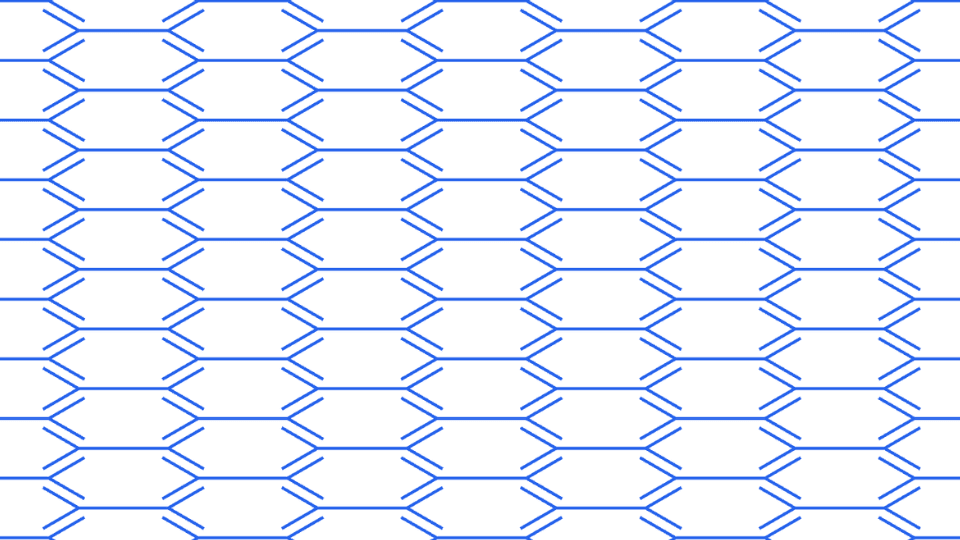

Cross Living Hinge
Living hinges with an X-lattice pattern – maximum flexibility for extra-tight bend radii.
X-lattice patternMaximum flexibilitySVG, DXF & PDF
Pro1 €/file · included in CNC Base Pro (30 €/year)

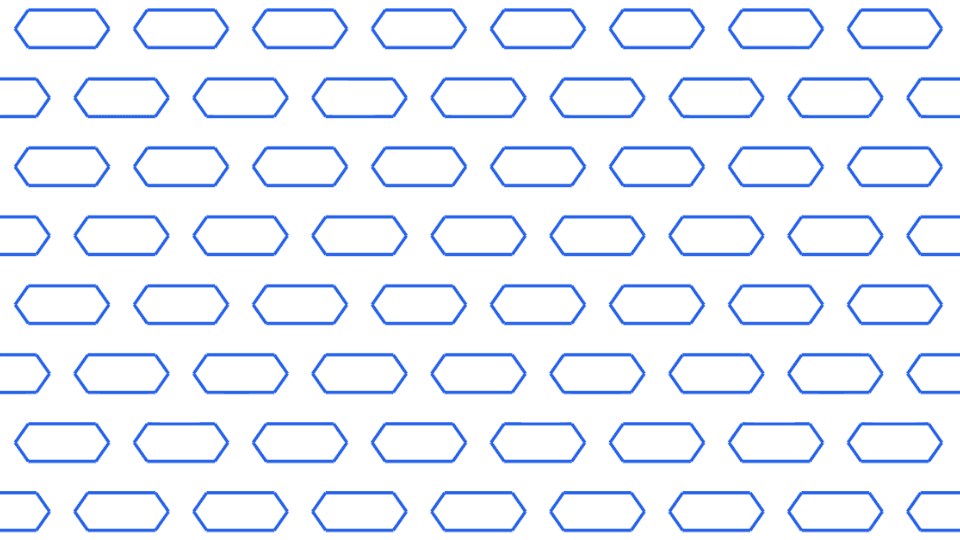

Hex Living Hinge
Living hinges made of elongated hexagons – flexible in two axes for doubly curved surfaces.
Hexagon patternFlexes in 2 axesSVG, DXF & PDF
Pro1 €/file · included in CNC Base Pro (30 €/year)
Chevron Living Hinge
Living hinges made of nested arrowheads – every element a single continuous cut, with adjustable leg length and spacing.
Chevron patternContinuous cutsSVG, DXF & PDF
Pro1 €/file · included in CNC Base Pro (30 €/year)
Diamond Living Hinge
Living hinges made of elongated diamonds in a brick-wall offset – slim, evenly flexible, decorative.
Diamond patternClosed outlinesSVG, DXF & PDF
Pro1 €/file · included in CNC Base Pro (30 €/year)
Auxetic Living Hinge
Auxetic cut pattern made of rotating squares – expands when bent and wraps around doubly curved surfaces.
Rotating squaresStretches in 2 axesSVG, DXF & PDF
Pro1 €/file · included in CNC Base Pro (30 €/year)New

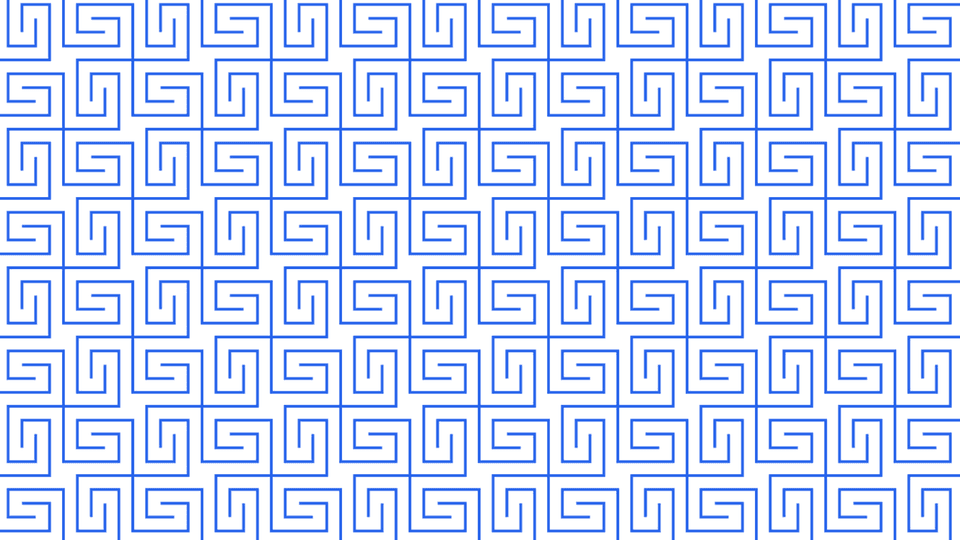

Maze Living Hinge
Living hinges made of pinwheel double spirals in a meander style – four springy spiral arms per cell make the sheet flex like fabric in every direction.
Pinwheel spiralsFlexes in all directionsSVG, DXF & PDF
Patterns & Structures
Generate decorative patterns and honeycomb structures for your panels and infills.
FreeBeta

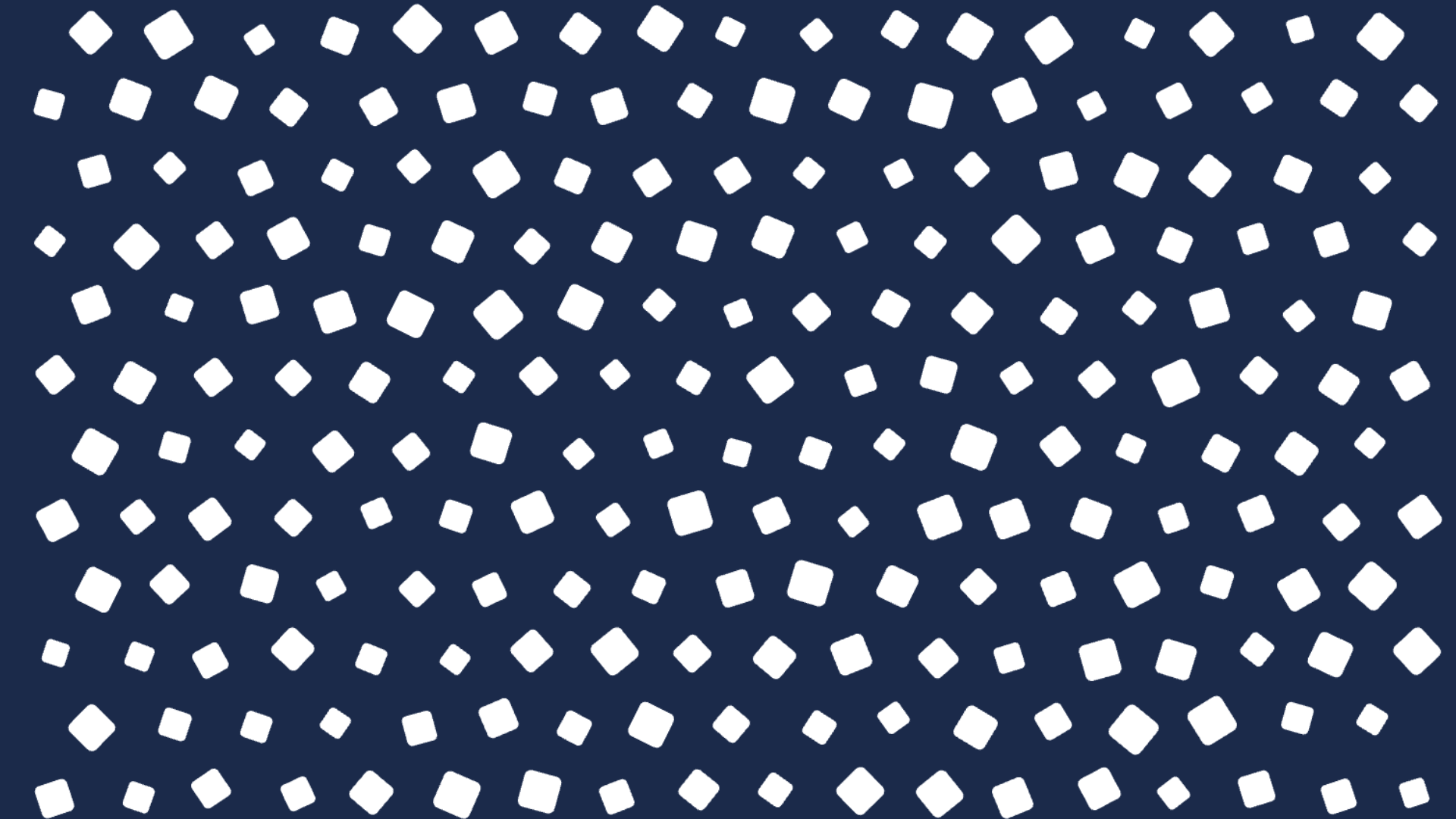

Pattern Generator
Plates with cut-out patterns from 27 shapes: five grids, guaranteed bridge, gradient, image and text mask – ready for laser and router.
27 shapes, two combinableBridge guaranteed in every directionImage & text drive the pattern
Pro1 €/file · included in CNC Base Pro (30 €/year)

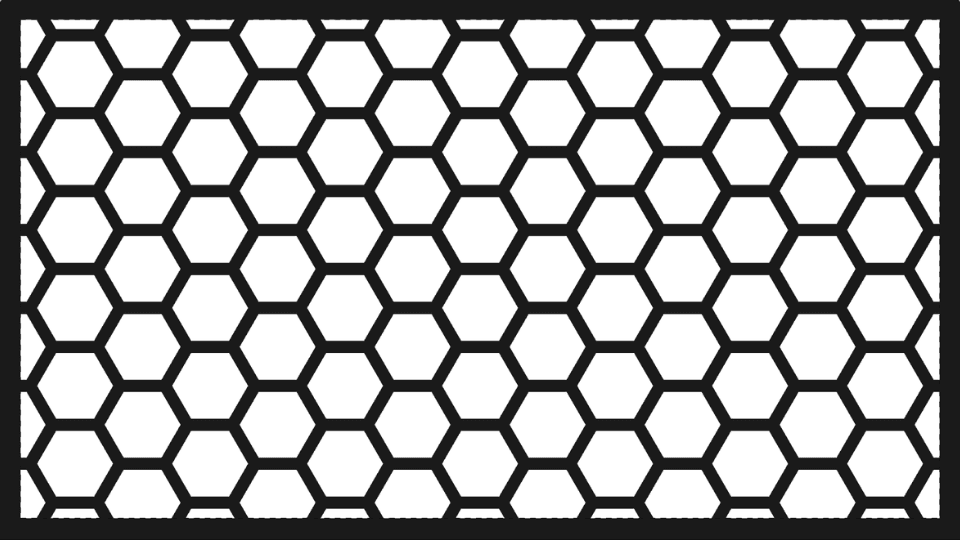

Honeycomb Generator
Honeycomb patterns as a grid inside a panel or as connected hexagon clusters — rectangle, circle or hexagon shape, nine cluster types.
Grid & cluster mode3 panel shapes, 9 clustersSVG, DXF & PDF
Mechanics & Joinery
Design moving parts like gears and precise wood joints for your project.
Pro1 €/file · included in CNC Base Pro (30 €/year)New

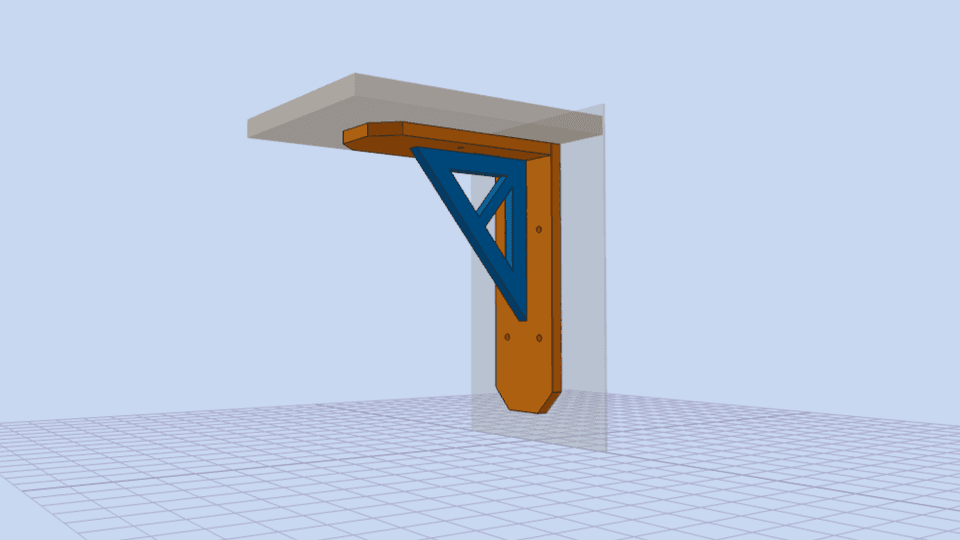

Bracket Designer
Shelf and mounting brackets from flat parts: finger-jointed legs, ribs with tabs, screw holes.
Finger-jointed cornerRibs in 5 stylesConfigurable screw holesSVG, DXF, PDF, STEP & STL
Free

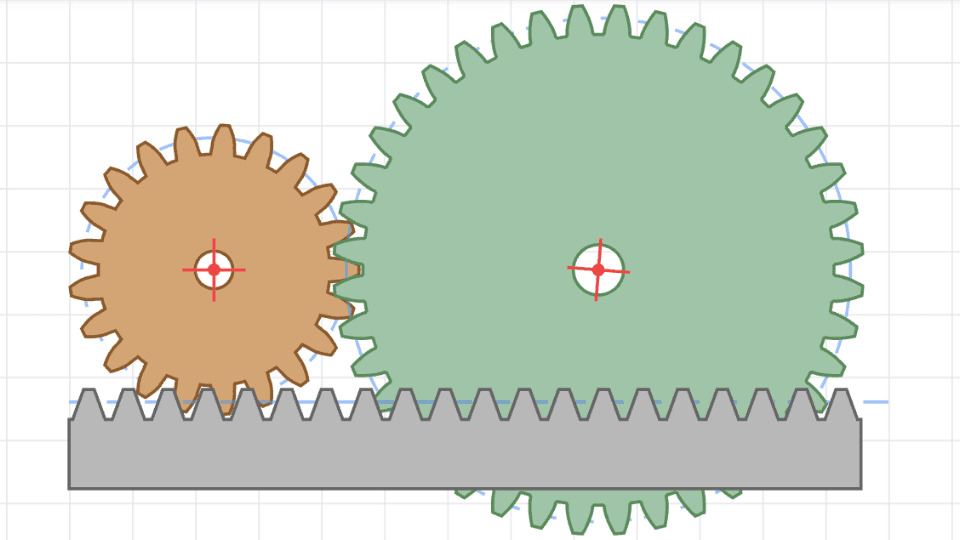

Gear Designer
Precise gears with a free choice of module and tooth count: spur gears, internal gears and racks — including a meshing preview.
Spur & internal gearsRacksSVG, DXF & PDF
FreeBeta
Joinery Designer
Butterfly keys, dovetails, patches and puzzle edges as positive and negative — with bit radius, dogbones and clearance.
4 joint typesPositive + negativeSVG, DXF & PDF
Utilities
Handy helpers for your workflow – from source image to cut-ready file.
Free

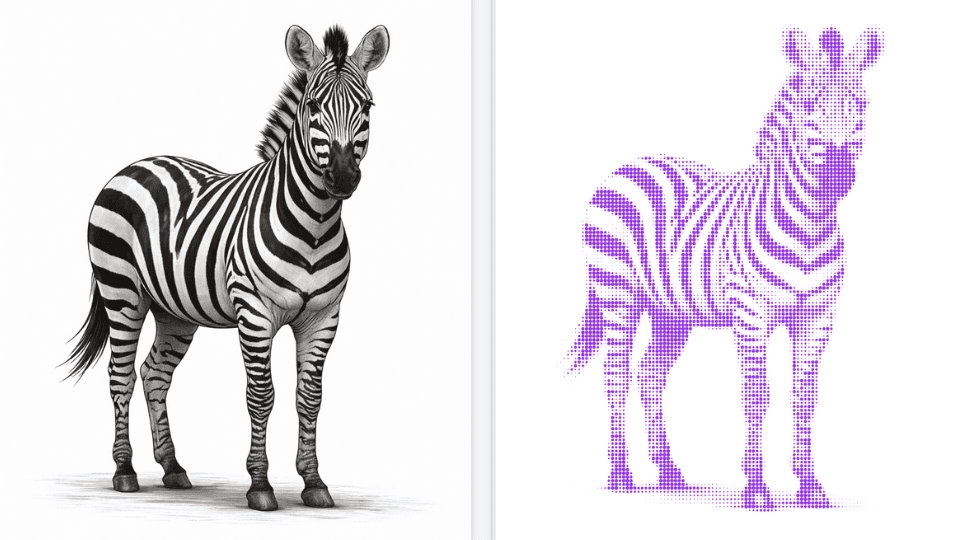

Image Tracer
Bitmap to vector: PNG, JPG or BMP become cutting paths — three modes for contours, area fill and halftone engraving.
Contour, fill & engravingPNG, JPG & BMP importSVG, DXF & PDF
FreeNew

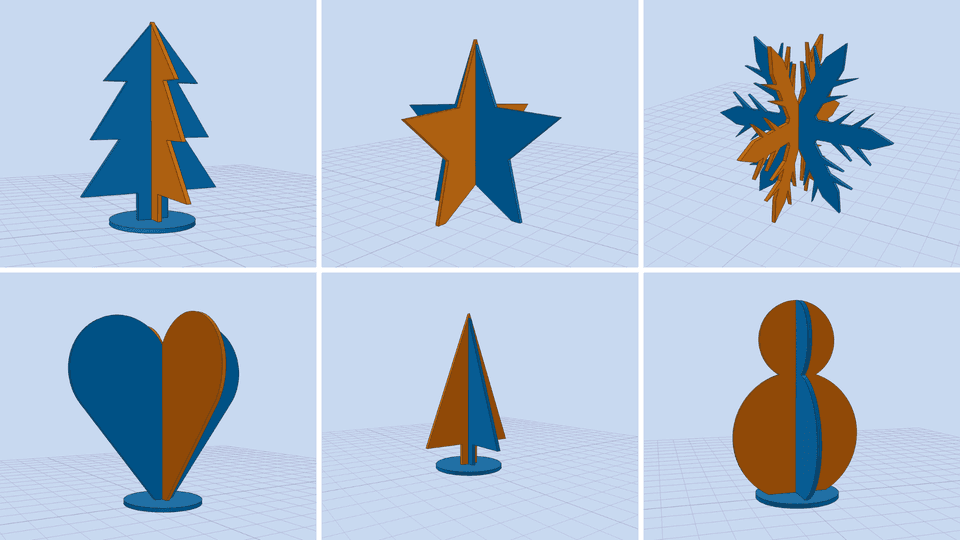

Deco Stand Generator
Free-standing decoration figures from two cross-slotted silhouettes — tree, star, snowman, heart or snowflake, slots automatically match the material thickness.
Slot-together, no glue6 silhouettesSVG, DXF, PDF, STEP & STL
How it works
1
Set parameters
Enter dimensions, material thickness and other options. The preview updates in real time.
2
Check the preview
Review the design in the live preview. Zoom, pan and check every detail.
3
Export
Download the file as SVG, DXF or PDF and import it into your CAM software.
