Centering Square
1 / 2

Centering Square

machine translated
48
10
1

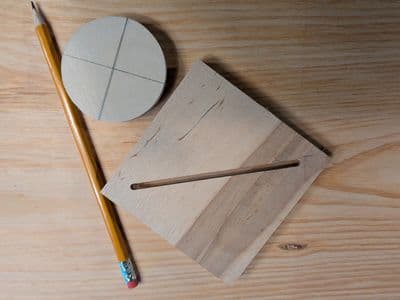

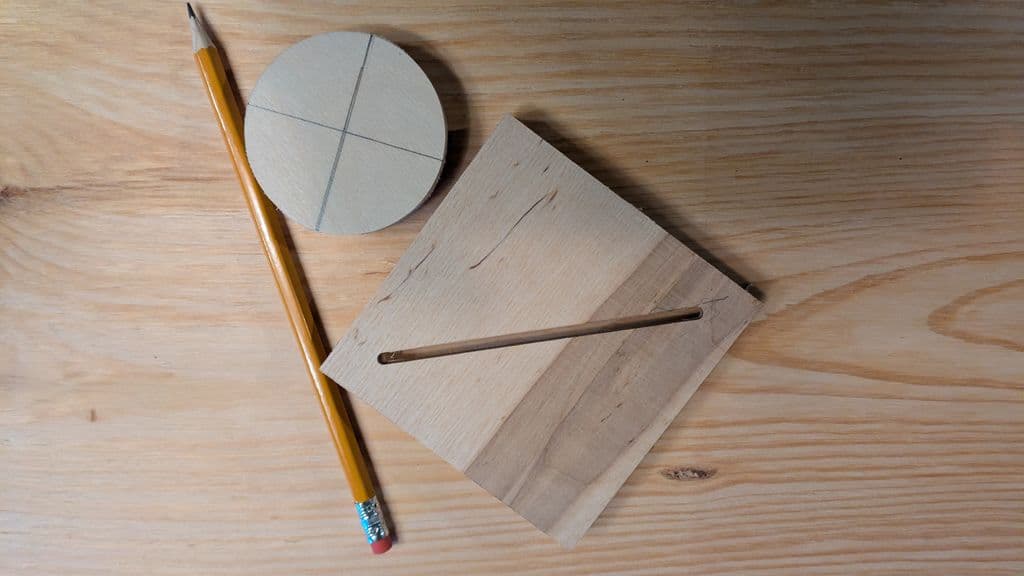

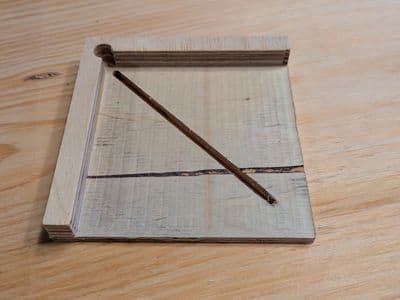

Centering square with a side length of 10cm. I milled the square from 15mm birch plywood, with the milled-out area being 10mm deep. I mainly use the square for finding the center point of smaller wood discs and dowels. The version in the photos was milled entirely with a 4mm end mill. I recommend using a smaller bit for milling the marking line, around 1.5-3mm. But that of course depends a lot on which marking tools or pens you use.

Loading comments...

Project information
Categories:
Machine:CNC router
Work area:120×120×30 mm
Milling time:approx. 15 min.
Uploaded:02/03/2026

Required tools

  • • Schaftfräser 1,5-4mm

Required materials

  • • Plattenwerkstoff 12-20mm
